Ductless mini-split repair starts with reading the unit's stored error code, then testing the part it points to: thermistors, fan motors, drain lines, flare connections, communication wiring or the inverter board. A diagnostic typically runs $89 to $149, and most repairs range from $185 to $1,195. Sensor and drain fixes are often done the same day; boards may need ordering.
Mini-splits are smarter than a standard central air system, and that cuts both ways. The indoor and outdoor units talk to each other constantly, and when a temperature sensor reads wrong or the communication signal drops, the system protects itself by shutting down and flashing a code. The good news is that the code usually narrows the problem fast. The catch is that codes differ by brand and model, and the same blink pattern can mean different things on two different units.
Landcons carries the service manuals and diagnostic tools for the major ductless brands, including Mitsubishi Electric and Daikin. We pull the fault history, then confirm it with a meter or gauge before replacing anything, because a code that says outdoor coil sensor can just as easily be a loose connector or a chewed wire. Guessing at inverter boards is an expensive way to fix a mini-split.
Mini-split symptoms we see most, and what they usually mean
Each of these points us toward a different part of the system.
Blinking lights or an error code on the head
The unit has stopped itself to prevent damage. Write down the number of blinks or the code on the display before you reset it, because that history helps us diagnose it.
Water dripping from the indoor head
A clogged drain line, a kinked drain hose behind the wall, or a head mounted out of level lets water spill out the front. Sometimes the drain pan itself is caked with slime.
Musty or sour smell when it starts
Mildew grows on the blower wheel and coil inside the head when they stay damp. It also cuts airflow and can leave dark spots on the louvers.
Weak heat on cold mornings
Low refrigerant from a leaking flare joint, a frozen outdoor coil that is not defrosting, or a failing outdoor fan motor all reduce heat output when you need it most.
Ice building up on the outdoor unit
Some frost is normal in heat mode, but a solid block of ice means a defrost problem, a blocked drain under the unit, or a sensor reading wrong.
One head works and another does not
On multi-zone systems, a single dead head often points to a communication wire fault, a failed indoor board, or a closed service valve on that zone's line.
The remote does nothing
Start with fresh batteries and check that the receiver window on the head is not blocked. If the head still ignores the remote, the indoor control board or its display may have failed.
How we troubleshoot a mini-split that is not working
Our process follows the fault code first, then the readings, then the repair.
Read the fault code and history
We pull the active code and any stored codes from the indoor or outdoor board. That history often shows whether this is a one-time trip or a repeating problem.
Test sensors and wiring
We measure each thermistor's resistance against the manufacturer's temperature chart and check communication voltage between the indoor and outdoor units. Loose terminal screws and damaged interconnect wire cause a large share of faults.
Check refrigerant at the flare joints
With an electronic detector and bubble solution, we test every flare connection at the head and outdoor unit. If the charge is low, we confirm it with pressures and pipe temperatures rather than adding refrigerant blind.

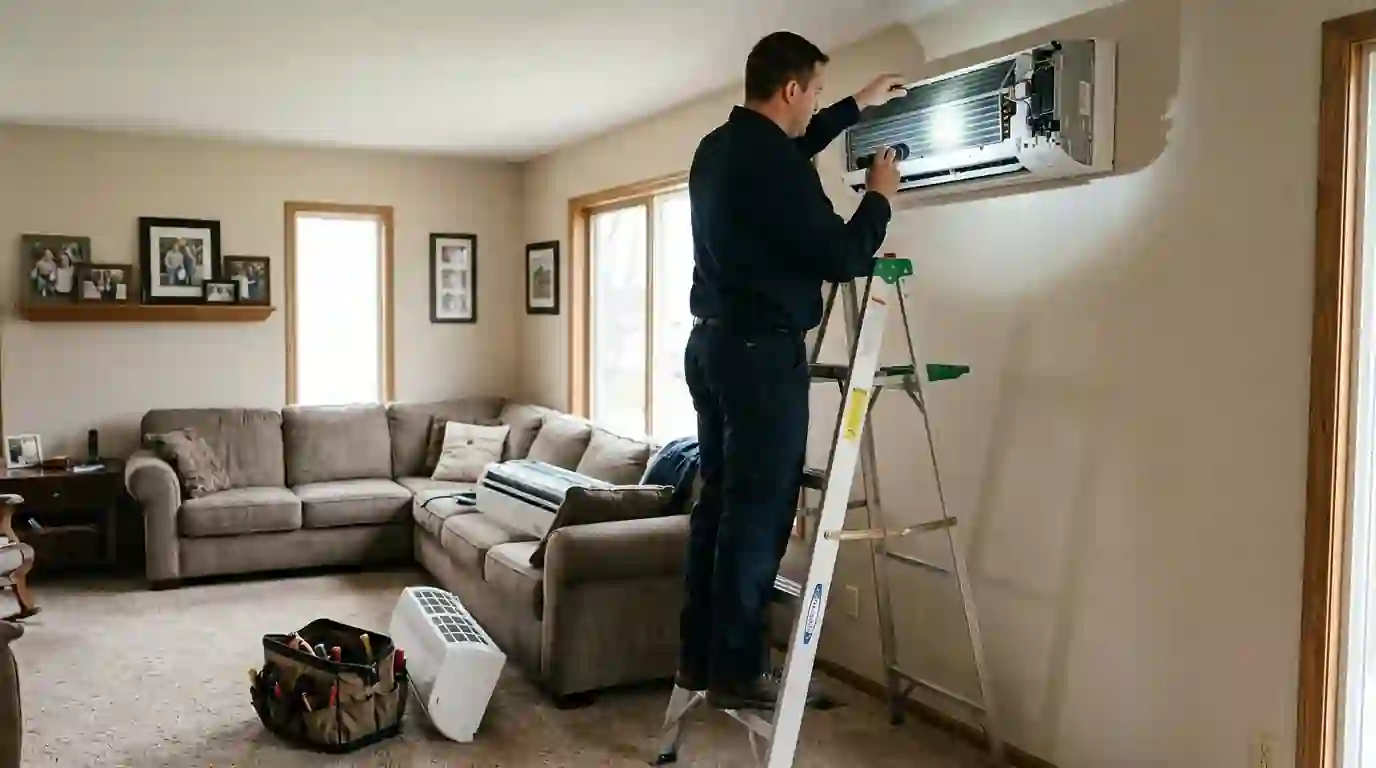

Clean the head, drain and coil
When drainage or odor is the issue, we remove the front cover, flush the drain pan and line, and clean the coil and blower wheel with a wash bag and coil cleaner. A dirty blower wheel can cut airflow by a third.
Repair, run both modes and record readings
After the fix, we run the unit in cooling and heating, verify discharge temperatures and fan speeds, and clear the fault history so any new code is easy to spot later.
Typical ductless mini-split repair costs
Most mini-split repairs fall into a handful of price bands once the fault is identified.
| Item | Typical range |
|---|---|
| Diagnostic visit (daytime) | $89 to $149 |
| Indoor head deep cleaning (coil and blower wheel) | $185 to $395 |
| Thermistor or sensor replacement | $195 to $445 |
| Flare joint leak repair and recharge | $345 to $895 |
| Indoor or outdoor control board | $485 to $1,195 |
| Outdoor fan motor | $425 to $895 |
What moves the price
- Brand and model, since mini-split boards and sensors are not universal parts.
- Whether the system is still under the manufacturer's parts warranty.
- How hard the head or drain is to reach, especially high ceilings or tight attic spaces.
- Refrigerant amount needed after a leak repair on long line sets.
- Whether a part must be ordered, which adds a second visit.
These are typical ranges. We diagnose first and give you the actual repair price before any work begins. See every range in one place in our HVAC price guide.
Mini-split problems that Fort Wayne weather tends to cause

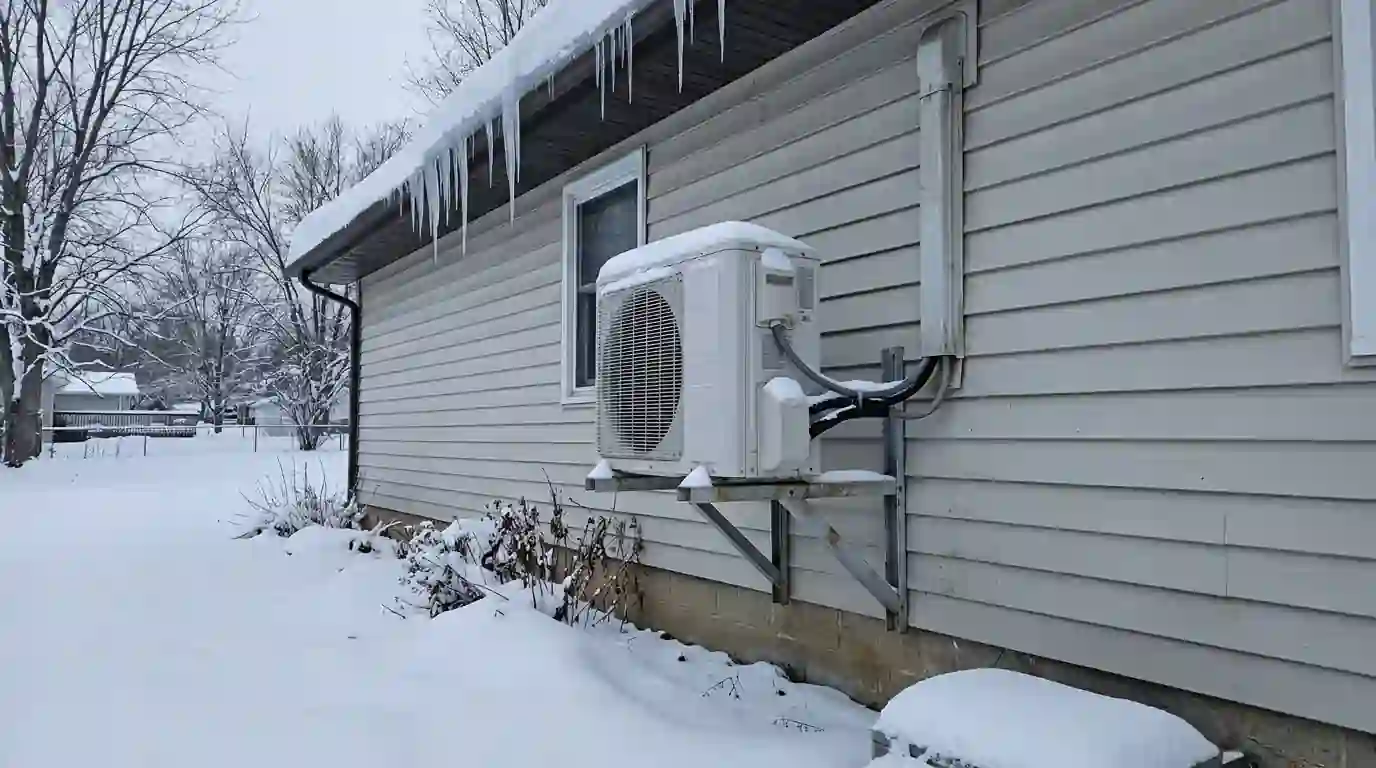

Snow and ice drive a lot of our winter mini-split calls around Fort Wayne. With about 30 inches of snow in a typical winter, outdoor units set on the ground or on low pads get buried, and the water they shed during defrost refreezes underneath until ice reaches the coil. When that happens, heat output drops and the unit may lock out. Raising the outdoor unit on a stand or wall bracket and keeping a clear drain path under it fixes the problem for good.
Summer brings the opposite trouble. On humid July afternoons near 84°F, a head serving a busy upstairs room can pull a lot of water out of the air, and any slope problem in the drain line shows up quickly as drips down the wall. We see this often in the older homes of Forest Park, Lakeside and West Central, where heads were added to rooms with tricky interior wall routing and a small condensate pump was installed that later clogged or failed.
Before you call about your mini-split
A few checks can solve simple problems and help us bring the right part.
- Replace the remote batteries and confirm the mode (cool, heat, dry, fan).
- Pull and rinse the washable filters in the indoor head.
- Write down the blink count or error code before resetting.
- Check the breaker and the outdoor disconnect.
- Look for snow, ice or leaves blocking the outdoor unit.
- Note whether water is dripping from the front of the head or behind it.
- On multi-zone systems, note which heads work and which do not.
Brands we work on
We service Carrier, Trane, Lennox, Goodman, Rheem and every other major make, plus WaterFurnace geothermal units built here in Fort Wayne.
Areas we cover for this service
We run this work across Fort Wayne and the towns around it. These are the places we are called to most; if your town is not listed, call and ask.
Ductless Mini-Split Repair questions we hear often
Why is my mini-split blinking a code after a power outage?
Brief power interruptions and voltage dips can trip a protective fault on the inverter board. Turn the unit off at its breaker for about five minutes, then back on. If the code returns, the outage may have damaged a board or exposed an existing problem, and a mini-split repair visit is the next step.
Can mini-split repair fix a head that keeps leaking water down the wall?
Yes. The fix depends on the cause: a clogged drain pan or line, a drain hose kinked inside the wall, a head that has pulled out of level, or a condensate pump that has failed. We flush and test the drain, re-level the head if needed and replace any failed pump.
Is it worth repairing an older ductless mini-split?
Usually yes for sensors, drains, fan motors and flare leaks. If a 12 year old unit needs a compressor or an outdoor inverter board on a model that is no longer supported, replacement is often the better value. We give you both numbers so the decision is yours.
Why does my mini-split blow cold air for a few minutes in heat mode?
A short pause or cool air at startup can be normal while the coil warms up, and during defrost cycles the indoor fan stops for a few minutes. If it blows cold for long periods, the system may be low on refrigerant, stuck in defrost, or have a faulty sensor, all of which we test.
Do you handle mini-split repair on Mitsubishi Electric and Daikin units?
Yes. We repair Mitsubishi Electric, Daikin and most other ductless brands. Many parts like boards and thermistors are model specific, so having the model number from the label on the side of the indoor or outdoor unit when you call helps us check part availability right away.
